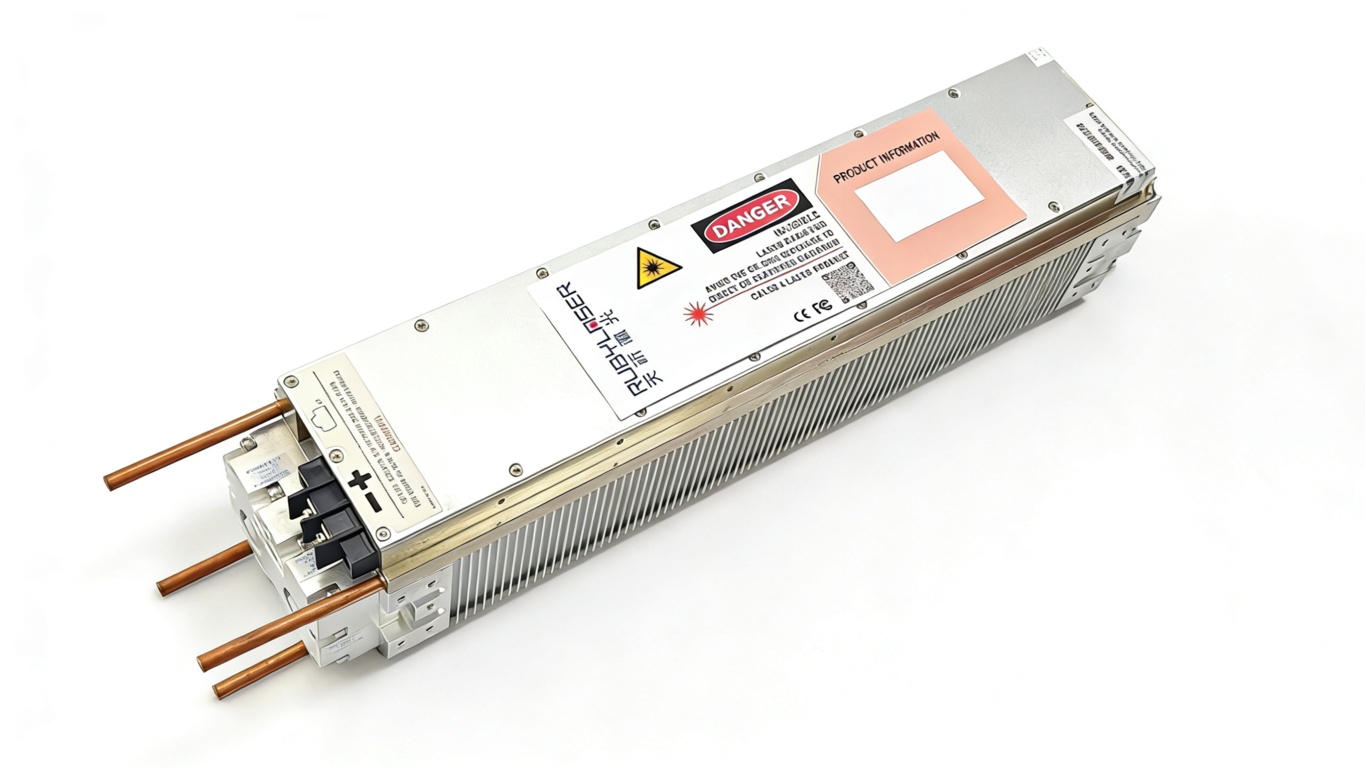

RLT-60 Series RF CO2 laser tube

1. It adopts a waveguide structure design, which makes for excellent beam quality.2. It adopts a fully metal enclosed design and has maintenance free features. 3. It adopts an integrated design and is easy to integrate into laser equipment.

Order online

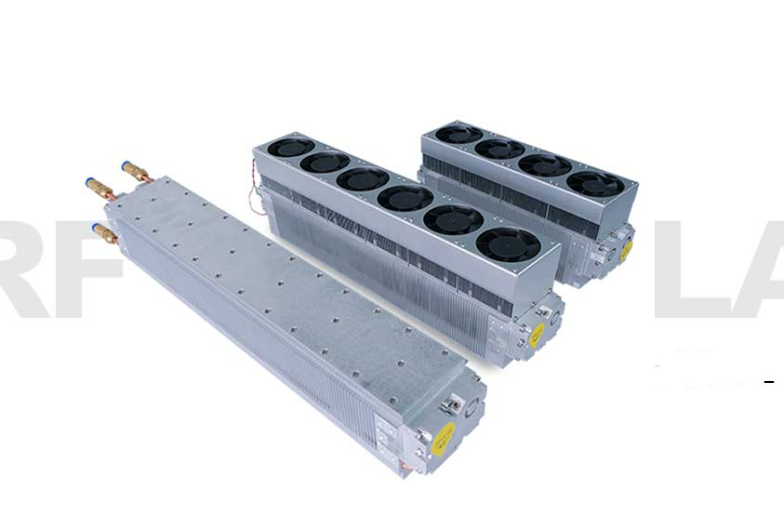

RLT-60 Series CO2 RF laser tube

1.Model:RLT-60 Air cooling,RLT-60 Water-cooling

2.Produdct featrure:

3. Application industry:

Remove glue; Carving of wooden products; Acrylic cutting and carving; Cowboy product carving.The RLT-60 series CO2 RF laser tube has different wavelengths and diverse power characteristics, making it widely used in laser coding, beverage packaging marking, paper box packaging marking, button marking, wood carving, acrylic carving and cutting, non genuine leather carving and cutting.

4. Technical parameters:

Model	RLT-60i	RLT-60h	RLT-60		RLT-60iL	RLT-60hL	RLT-60L
Wavelength	9.3µm	10.2µm	10.6µm		9.3µm	10.2µm	10.6µm
Laser power	45W	55W	60W		45W	55W	60W
Power stability	less than ±5%
Beam quality M²	less than 1.2
Beam Diameter（1/e²)	2.0±0.2mm
Beam divergence angle(full angle)	less than 8.0mrad
Polarization	Horizontal linear polarization,more than 100:1
Modulation frequency	0-25kHz
Duty cycle range	0-100%
Electrical input	DC48V/12A
Cooling method	Air-cooling			Water-cooling
Size	536mm×92.5mm×154mm			578mm×92.5mm×92mm
Weight	10.0kg			8.8kg
Working shell temperature	less than 60℃(140 °F)			less than 50℃(122 °F)
Ambient Temperature	less than 15~40℃(59~104 °F)
Humidity	Non-condensing
Ambient temperature	-10~60℃(14~140 °F)
) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.
